Oil Tank Gauge Chart
Most home heating oil tanks have a small gauge on top that shows how full the tank is. This gauge provides a rough estimate, not an exact measurement. Over time, gauges can become inaccurate due to normal wear, sludge buildup inside the tank, or mechanical issues. For that reason, many homeowners use a simple manual method to get a more reliable estimate.
Using a Heating Oil Tank Chart
Heating oil tank charts help you estimate how many gallons are in your tank based on:
- The number of inches of oil measured
- Your tank size (such as 275, 330, or 500 gallons)
Match your tank size with your oil level to estimate how many gallons remain. Because tank shapes vary, these numbers are a guide and not exact measurements.
Never Worry About Checking Your Tank Again! With Hillside’s Automatic Delivery Program, you never need to check your oil level. We track your usage, monitor the weather, and schedule deliveries automatically so you never run out or have to guess when to order.
Fuel Oil Tank Level Calculator
Select your tank type and enter your current oil level in inches to calculate the remaining gallons.
Select a tank type to see the maximum level.
Please enter a valid number within the tank’s range.
60″ L × 27″ W × 44″ H
Max: 275 gal | Usually filled to: 250 gal
Please call our office at 302-738-4144 or 410-398-2146.
How Long Your Heating Oil Will Last
Several factors determine how quickly you will need your next heating oil delivery. Your tank size is the starting point. Most homes in our area use a 275-gallon tank, but how long that fuel lasts depends on the size of your home, the quality of your insulation, and your heating habits. A well-sealed home set to 68°F will stretch a tank much further than a drafty home set to 72°F. The efficiency of your heating equipment also matters. Older systems often burn significantly more oil to produce the same amount of heat compared to a modern, well-maintained system.How to Estimate Your Heating Oil Consumption
Heating oil usage changes with outdoor temperatures across Delaware, Maryland, and Pennsylvania. These averages can help estimate how quickly your supply may be used.- Above 50°F: 2 gallons or less per day (minimal usage)
- 40°F to 50°F: 3 to 4 gallons per day
- 30°F to 40°F: 5 to 7 gallons per day
- 20°F to 30°F: 8 to 10 gallons per day
- Below 20°F: 10 or more gallons per day during peak winter cold
Tips to Make Your Heating Oil Last Longer
- Smart temperature control: Use a programmable thermostat to lower temperatures at night or when no one is home.
- Seal the home: Weather stripping and caulking help prevent heat loss around windows and doors.
- Professional tune-ups: A clean and properly serviced heating system runs more efficiently. Hillside offers service plans with annual maintenance to help prevent wasted fuel.
- Supplemental heat: Fireplaces, space heaters, or a ductless mini-split system can help warm occupied rooms while reducing the workload on your main heating system.
When Should You Order Oil?
Running out of oil can be inconvenient and may cause heating system issues. To stay ahead of cold weather and delivery schedules, Hillside recommends ordering before your tank level gets too low. The ideal time to order is when your gauge reads between ¼ and ⅓ full. This gives you a comfortable buffer during cold snaps and helps avoid pulling sediment from the bottom of the tank.- 275-gallon horizontal tank: Order at 10″–12″ (about 90–120 gallons remaining)
- 275-gallon vertical tank: Order at 12″–14″ (about 60–80 gallons remaining)
Find Your Tank Size and Type
275G Vertical • 275 Gallon Horizontal • 330 Gallon Vertical • 330 Gallon Horizontal • 500 Gallon Cylinder • 550 Gallon Cylinder • 1000 Gallon Cylinder
275 Gallon (Vertical)
The 275-gallon vertical oil tank is by far the most common tank used for home heating oil. This tank is usually filled to a maximum of about 250 gallons (about 6 inches from the top) to allow for expansion.

Tank Dimensions
|
Width: 27 Inches
|
Height: 44 Inches
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 2 |
| 2″ | 5 |
| 3″ | 9 |
| 4″ | 14 |
| 5″ | 19 |
| 6″ | 25 |
| 7″ | 31 |
| 8″ | 37 |
| 9″ | 44 |
| 10″ | 51 |
| 11″ | 58 |
| 12″ | 65 |
| 13″ | 72 |
| 14″ | 80 |
| 15″ | 87 |
| Inches | Gallons |
|---|---|
| 16″ | 94 |
| 17″ | 101 |
| 18″ | 108 |
| 19″ | 115 |
| 20″ | 123 |
| 21″ | 130 |
| 22″ | 137 |
| 23″ | 144 |
| 24″ | 151 |
| 25″ | 158 |
| 26″ | 166 |
| 27″ | 173 |
| 28″ | 180 |
| 29″ | 187 |
| 30″ | 194 |
| Inches | Gallons |
|---|---|
| 31″ | 201 |
| 32″ | 209 |
| 33″ | 216 |
| 34″ | 223 |
| 35″ | 230 |
| 36″ | 236 |
| 37″ | 243 |
| 38″ | 249 |
| 39″ | 254 |
| 40″ | 260 |
| 41″ | 265 |
| 42″ | 269 |
| 43″ | 272 |
| 44″ | 275 |
| – | – |
cv
330 Gallon (Vertical)
The 330-gallon vertical steel tank is very similar to the 275-gallon tank but is 1 foot longer. These tanks are generally filled to around 300 gallons.

Tank Dimensions
|
Width: 27 Inches
|
Height: 44 Inches
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 2 |
| 2″ | 6 |
| 3″ | 11 |
| 4″ | 17 |
| 5″ | 23 |
| 6″ | 30 |
| 7″ | 38 |
| 8″ | 45 |
| 9″ | 53 |
| 10″ | 61 |
| 11″ | 70 |
| 12″ | 78 |
| 13″ | 87 |
| 14″ | 96 |
| 15″ | 104 |
| Inches | Gallons |
|---|---|
| 16″ | 113 |
| 17″ | 121 |
| 18″ | 130 |
| 19″ | 139 |
| 20″ | 147 |
| 21″ | 156 |
| 22″ | 164 |
| 23″ | 173 |
| 24″ | 182 |
| 25″ | 190 |
| 26″ | 199 |
| 27″ | 207 |
| 28″ | 216 |
| 29″ | 225 |
| 30″ | 233 |
| Inches | Gallons |
|---|---|
| 31″ | 242 |
| 32″ | 250 |
| 33″ | 259 |
| 34″ | 267 |
| 35″ | 275 |
| 36″ | 283 |
| 37″ | 291 |
| 38″ | 298 |
| 39″ | 305 |
| 40″ | 312 |
| 41″ | 318 |
| 42″ | 323 |
| 43″ | 326 |
| 44″ | 330 |
| – | – |
275 Gallon (Horizontal)
The 275-gallon horizontal (flat) tank is almost the same shape as its vertical counterpart, but it lies flat on its side for low-clearance installations. These are much less common than the vertical tanks but are still used relatively often in crawl spaces and under decks. These tanks are usually filled to about 250 gallons.
Tank Dimensions
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 6 |
| 2″ | 14 |
| 3″ | 22 |
| 4″ | 31 |
| 5″ | 41 |
| 6″ | 52 |
| 7″ | 63 |
| 8″ | 74 |
| 9″ | 85 |
| Inches | Gallons |
|---|---|
| 10″ | 96 |
| 11″ | 108 |
| 12″ | 119 |
| 13″ | 131 |
| 14″ | 143 |
| 15″ | 154 |
| 16″ | 166 |
| 17″ | 178 |
| 18″ | 189 |
| Inches | Gallons |
|---|---|
| 19″ | 199 |
| 20″ | 211 |
| 21″ | 222 |
| 22″ | 232 |
| 23″ | 240 |
| 24″ | 251 |
| 25″ | 260 |
| 26″ | 268 |
| 27″ | 275 |
330 Gallon (Horizontal)
The 330-gallon horizontal (flat) steel tank is very similar to the 275 horizontal, but is a foot longer. These tanks are generally filled to around 300 gallons.
Tank Dimensions
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 7 |
| 2″ | 17 |
| 3″ | 27 |
| 4″ | 38 |
| 5″ | 49 |
| 6″ | 63 |
| 7″ | 75 |
| 8″ | 89 |
| 9″ | 102 |
| Inches | Gallons |
|---|---|
| 10″ | 116 |
| 11″ | 129 |
| 12″ | 143 |
| 13″ | 157 |
| 14″ | 171 |
| 15″ | 185 |
| 16″ | 199 |
| 17″ | 213 |
| 18″ | 227 |
| Inches | Gallons |
|---|---|
| 19″ | 238 |
| 20″ | 253 |
| 21″ | 266 |
| 22″ | 278 |
| 23″ | 287 |
| 24″ | 301 |
| 25″ | 312 |
| 26″ | 321 |
| 27″ | 330 |
500 Gallon Cylinder
The 500-gallon cylinder is usually filled to about 450 gallons.
Tank Dimensions
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 3 |
| 2″ | 7 |
| 3″ | 13 |
| 4″ | 20 |
| 5″ | 28 |
| 6″ | 36 |
| 7″ | 45 |
| 8″ | 55 |
| 9″ | 65 |
| 10″ | 75 |
| 11″ | 86 |
| 12″ | 98 |
| 13″ | 109 |
| 14″ | 121 |
| 15″ | 133 |
| 16″ | 146 |
| Inches | Gallons |
|---|---|
| 17″ | 158 |
| 18″ | 171 |
| 19″ | 184 |
| 20″ | 197 |
| 21″ | 210 |
| 22″ | 223 |
| 23″ | 237 |
| 24″ | 250 |
| 25″ | 263 |
| 26″ | 276 |
| 27″ | 290 |
| 28″ | 303 |
| 29″ | 316 |
| 30″ | 329 |
| 31″ | 341 |
| 32″ | 354 |
| Inches | Gallons |
|---|---|
| 33″ | 366 |
| 34″ | 379 |
| 35″ | 390 |
| 36″ | 402 |
| 37″ | 413 |
| 38″ | 424 |
| 39″ | 435 |
| 40″ | 445 |
| 41″ | 455 |
| 42″ | 464 |
| 43″ | 472 |
| 44″ | 480 |
| 45″ | 487 |
| 46″ | 493 |
| 47″ | 497 |
| 48″ | 500 |
550 Gallon Cylinder
The 550-gallon cylinder is usually filled to about 500 gallons.
Tank Dimensions
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 3 |
| 2″ | 8 |
| 3″ | 14 |
| 4″ | 22 |
| 5″ | 30 |
| 6″ | 40 |
| 7″ | 50 |
| 8″ | 60 |
| 9″ | 71 |
| 10″ | 83 |
| 11″ | 95 |
| 12″ | 108 |
| 13″ | 120 |
| 14″ | 134 |
| 15″ | 147 |
| 16″ | 161 |
| Inches | Gallons |
|---|---|
| 17″ | 174 |
| 18″ | 188 |
| 19″ | 203 |
| 20″ | 217 |
| 21″ | 231 |
| 22″ | 246 |
| 23″ | 261 |
| 24″ | 275 |
| 25″ | 290 |
| 26″ | 304 |
| 27″ | 319 |
| 28″ | 333 |
| 29″ | 348 |
| 30″ | 362 |
| 31″ | 376 |
| 32″ | 390 |
| Inches | Gallons |
|---|---|
| 33″ | 403 |
| 34″ | 417 |
| 35″ | 430 |
| 36″ | 443 |
| 37″ | 455 |
| 38″ | 467 |
| 39″ | 479 |
| 40″ | 490 |
| 41″ | 501 |
| 42″ | 511 |
| 43″ | 520 |
| 44″ | 528 |
| 45″ | 536 |
| 46″ | 542 |
| 47″ | 548 |
| 48″ | 550 |
1000 Gallon Cylinder
The 1000-gallon cylinder is a common size for underground tanks. These tanks are usually filled to about 900 gallons.

Tank Dimensions
|
Diameter: 48 Inches
Oil Tank Level Chart
| Inches | Gallons |
|---|---|
| 1″ | 5 |
| 2″ | 14 |
| 3″ | 26 |
| 4″ | 40 |
| 5″ | 55 |
| 6″ | 72 |
| 7″ | 90 |
| 8″ | 110 |
| 9″ | 130 |
| 10″ | 151 |
| 11″ | 173 |
| 12″ | 195 |
| 13″ | 219 |
| 14″ | 243 |
| 15″ | 267 |
| 16″ | 292 |
| Inches | Gallons |
|---|---|
| 17″ | 317 |
| 18″ | 342 |
| 19″ | 368 |
| 20″ | 394 |
| 21″ | 420 |
| 22″ | 447 |
| 23″ | 473 |
| 24″ | 500 |
| 25″ | 526 |
| 26″ | 553 |
| 27″ | 579 |
| 28″ | 605 |
| 29″ | 631 |
| 30″ | 657 |
| 31″ | 683 |
| 32″ | 708 |
| Inches | Gallons |
|---|---|
| 33″ | 733 |
| 34″ | 757 |
| 35″ | 781 |
| 36″ | 804 |
| 37″ | 827 |
| 38″ | 849 |
| 39″ | 870 |
| 40″ | 890 |
| 41″ | 909 |
| 42″ | 927 |
| 43″ | 944 |
| 44″ | 960 |
| 45″ | 974 |
| 46″ | 985 |
| 47″ | 994 |
| 48″ | 1000 |

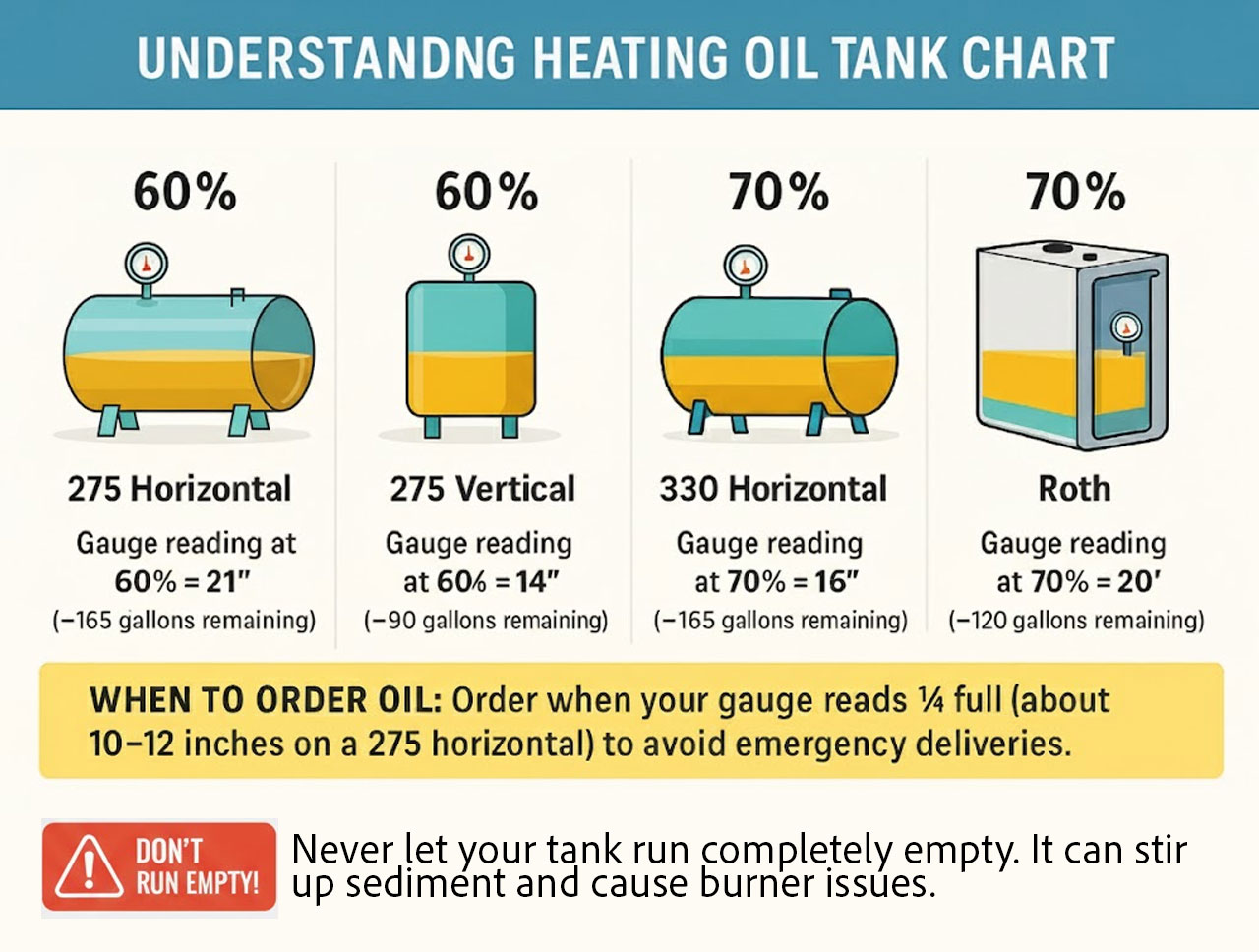

Understanding Your Heating Oil Tank Chart
Your heating oil tank chart helps convert the level shown on your gauge into an estimated number of gallons remaining in your tank. Each inch on the gauge corresponds to a different amount of fuel, depending on the tank’s size and shape.
Because oil tanks are round, not rectangular, the middle of the tank holds more fuel per inch than the top or bottom. This is why the chart values increase unevenly. For example, in a 275-gallon horizontal tank, 1 inch equals roughly 6 gallons, while 10 inches equals about 96 gallons. These charts provide reliable estimates, but they should be used as a guide rather than an exact measurement.
